Solder the connections

When replacing a driver, do I need to solder the connections?

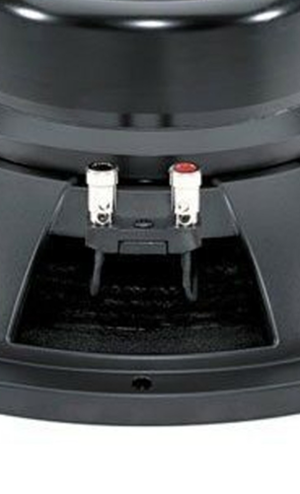

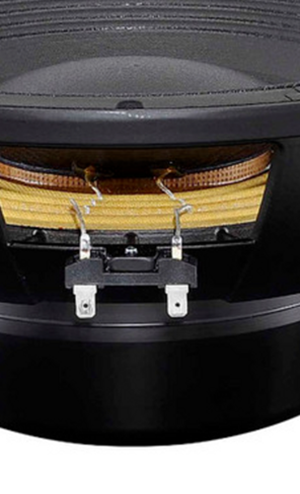

BASSBOSS always uses drivers with the push-to-release system but the other types are made and sold (see photos below - the first image is of BASSBOSS standard connectors. The second image is the type which requires this solution). If you get a service replacement drivers with the incorrect connectors, it's an easy fix.

The connection to those is best done using a 1/4” Faston connector. Those are crimped onto the end of the wire and don’t require any soldering. The connectors can be purchased at hardware stores or online.

Gardner Bender 1/4 in. Fully Insulated Wire Disconnects in Blue (15-Pack) 15-153F

A proper crimp tool, something like this, and a good, hard squeeze is also required.

Southwire 9 in. Non Insulated Crimping Cutting Tool Connectors 58993640
